Braided PVC tubing yog tsim los ntawm hom tshiab ntawm cov khoom siv PVC nrog polyester yarn reinforcement, nws tuaj yeem ua kom pom tseeb lossis lwm yam xim. Qhov loj tuaj yeem yog 1/4"-3", hloov tau thickness tuaj yeem ua tau raws li cov neeg siv khoom sib txawv.
Braided-PVC-tubing
Khoom Taw Qhia
|
Yam khoom |
Braided vinyl tubing |
|
Raw Khoom |
Tshiab PVC, siab zog polyester Khoom noj khoom haus qib hose yog tsim los ntawm FDA pom zoo cov khoom |
|
Loj/ID |
1/4"-3", 4mm-75mm |
|
Ntev / yob |
30m / 50m / 100m lossis customization |
|
Lub sij hawm xa tuaj |
Nquag 15-20 hnub rau 1x40HQ tom qab qhov kev txiav txim paub tseeb. |
|
Trade Term |
FOB Qingdao / CFR |
|
Them Nyiaj |
T / T, Irrevocable L / C |
|
Muaj peev xwm muab khoom |
600tons ib hlis |
|
Kev Cai Tshwj Xeeb |
Raws li cov neeg siv khoom xav tau |
|
Ua haujlwm kub |
-10 degree - 70 degree |
Braided-hose-pipe
OEM & ODM Customization Ntau lawm
Nta Thiab Qhov Zoo
Braided PVC tubing yog resistant rau acids, alkalis, ntau yam tshuaj, gases, thiab kua. Cov tubing tuaj yeem txiav kom loj raws li xav tau. Clear PVC Tube, Lub teeb yuag, Tsis-kos npe & yoog raws, nruj tolerances, tiv thaiv tshuaj lom neeg, ozone thiab huab cua, Tsis-conductive.
FDA ua raws, tuaj yeem siv rau hauv cov dej haus thiab khoom noj.
Kev luam cov lus thiab cov cim kab ntawm lub hose tuaj yeem ua kom zoo nkauj.
Tubing-feature
Daim ntawv thov
Braided PVC tubing yog tsuas yog siv rau huab cua, dej & zaub mov hloov, Lub teeb lub tshuab nqus tsev, Hlau conduit, thiab lwm yam.
Cov ntawv thov rau cov raj yas muaj xws li kev tuav cov ntshav thiab kua dej, cov twj peristaltic, hluav taws xob thiab thermal rwb thaiv tsev, kev tshuaj ntsuam xyuas, thiab kev tuav zaub mov thiab dej haus, thiab lwm yam.
Khoom noj khoom haus qib yog phthalate dawb, Muaj peev xwm tuav tau ntau yam khoom noj khoom haus, dej deionized, kua khoom noj, cua & dej khib nyiab kab, hmoov khoom noj khoom haus, portable dej hloov, cua ua pa kab, pneumatic kab, thiab ntim tshuab.
General-purpose-braided-tubing
Specifications
Lub thickness nyob rau hauv lub rooj yog rau siv, tej thickness yuav customization raws li cov neeg yuav tsum tau.
|
Kev ntsuas |
I.D. |
O.D. |
Ntev |
W.P |
B.P |
Qhov hnyav |
|
nti |
mm |
mm |
m |
bar |
bar |
kg / yob |
|
1/4 |
6 |
10 |
100 |
9 |
27 |
6.7 |
|
5/16 |
8 |
12 |
100 |
9 |
24 |
8.5 |
|
3/8 |
10 |
14 |
100 |
7 |
24 |
10.2 |
|
1/2 |
12 |
17 |
100 |
7 |
21 |
15.4 |
|
5/8 |
15 |
20 |
50 |
7 |
16 |
9.3 |
|
3/4 |
19 |
25 |
50 |
6 |
15 |
14 |
|
1 |
25 |
31 |
50 |
5 |
12 |
17.8 |
|
1-1/4 |
32 |
40 |
40 |
5 |
12 |
24.5 |
|
1-1/2 |
38 |
47 |
40 |
5 |
12 |
32.4 |
|
1-3/4 |
45 |
55 |
30 |
4 |
11 |
32 |
|
2 |
50 |
62 |
30 |
4 |
11 |
43 |
|
2-1/2 |
64 |
78 |
20 |
4 |
11 |
42.1 |
|
3 |
75 |
92 |
20 |
4 |
11 |
60.2 |

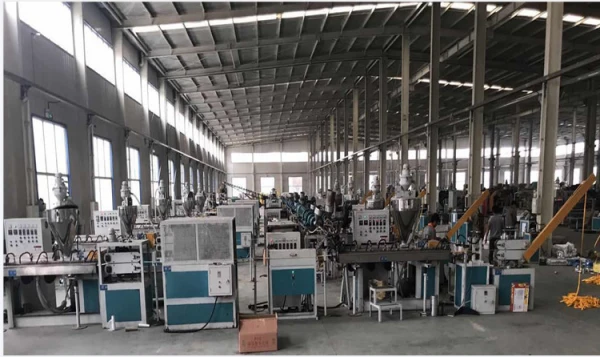

Txheej txheem ntau lawm

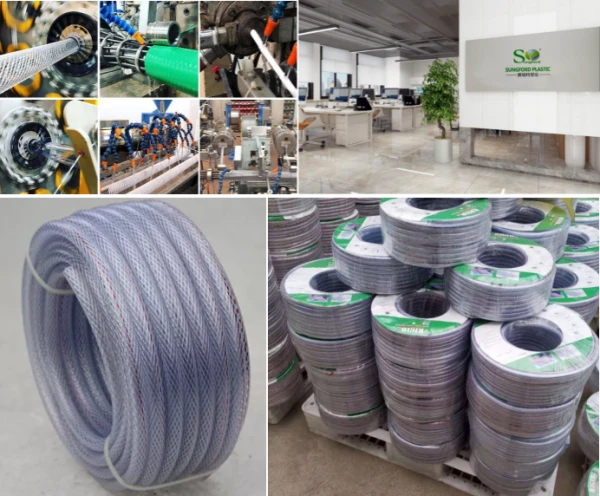

Kev tsim khoom, ntim thiab xa khoom
Txheem export ntim rau braided PVC hose tubing yog yas zaj duab xis.
Kev ntim tshwj xeeb tuaj yeem kho tau.
Lub Sijhawm xa tuaj: 15-20hnub rau 1x40HQ yog tias tsis muaj caij nyoog.
Chaw thau khoom chaw nres nkoj: Qingdao, Suav
Hose-production-packing
Hose-Xov xwm
Braided-tubing-xa khoom
Yuav ua li cas los daws qhov to ntawm Braided Tubing
Kuv yuav ua li cas yog tias kuv yuam kev khawb cov hlau tawv los yog pom qhov puas thaum siv PVC hose. Ua ntej tshaj plaws, peb yuav tsum xav txog dab tsi ua rau nws. Lub neej ntawm ib tug dav tubing yog ntau tshaj 5 xyoo. Qhov no yog tsim los ntawm cov ntaub ntawv dav dav, thiab nws tuaj yeem ncav cuag ntau tshaj 10 xyoo. Yog li peb yuav tsum xav txog seb nws puas yog lo lus nug ntawm hnub nyoog. Yog tias tsis yog, xav txog seb nws yog tshwm sim los ntawm sab nraud quab yuam thaum rub. Yog tias muaj ntau yam kev puas tsuaj, koj tsuas yog xav txog kev hloov pauv. Piv txwv li, thaum ib qho chaw lossis qhov kev ncua deb yog qhov ntev tshwj xeeb, txiav qhov chaw puas ncaj qha, thiab tom qab ntawd txuas los ntawm kev sib koom ua ke, tab sis tom qab siv cov kev sib koom ua ke, xav txog nws qhov teeb meem ntawm kev coj tus kheej thiab tsis tuaj yeem tshaj nws. Lub siab ib txwm, yog tias nws yog hom kev kub siab, xav txog kev hloov nws ncaj qha.
